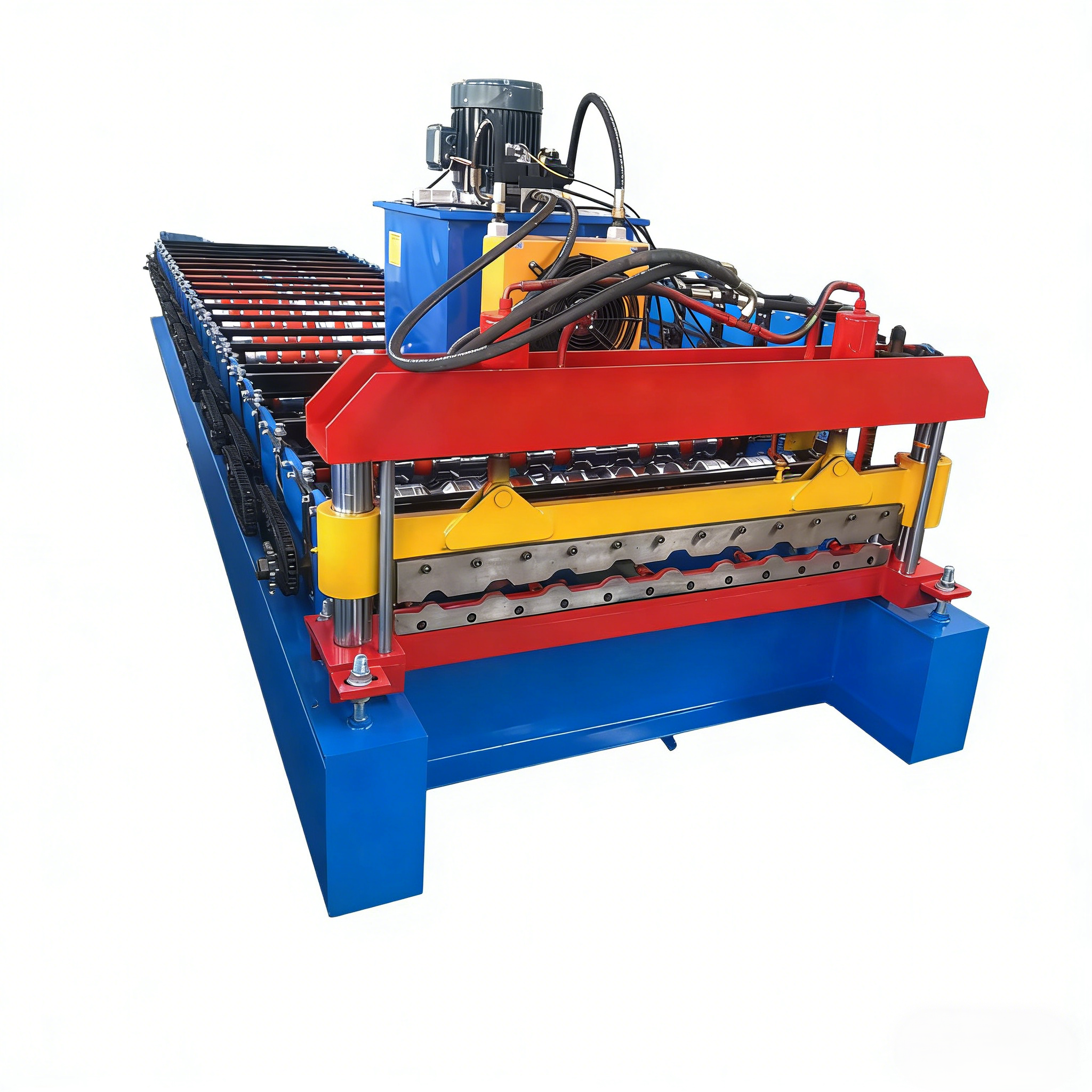

200-220-250 Floor Decking Machine
The fully automatic CNC tile press machine is precise in forming and stable in operation, meeting the needs of efficient production of various types of boards.
+86 15764178314
8615764178314
admin@txdmetal.com

Address：Room 111, Dongfang Xingye Steel Market, No. 121 Daqiao Road, Licheng District, Jinan City, Shandong Province, China

Payment Term：T/T, L/C, Western Union, etc
Design Style:customizable
Delivery Time:7 Days
Transportation：By sea or Land transportation

contact us

PRODUCT PARAMETERS


Machine profile

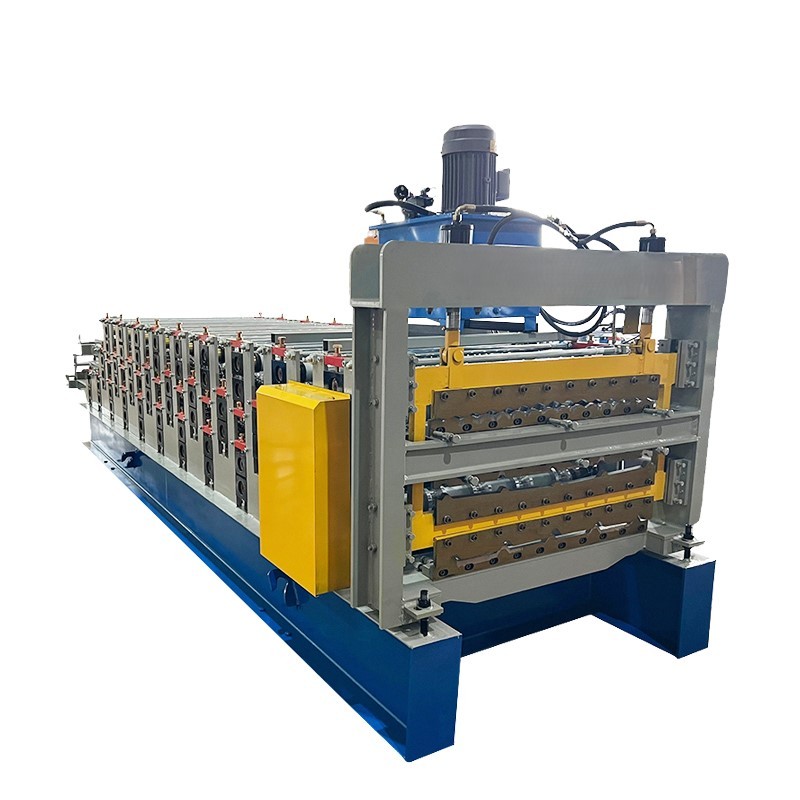

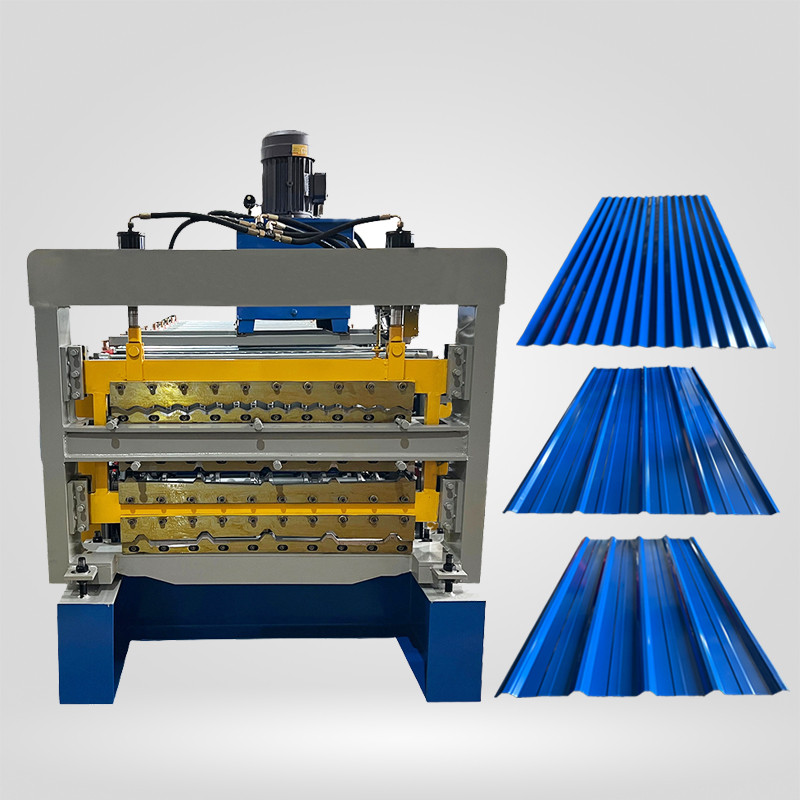

Introduction and Models of the Three-Layer Forming Machine for Roofing Tiles

The three-layer forming machine for roof tile presses integrates three forming functions, achieving the goal of "one machine for multiple uses and flexible production," making it an efficient and economical equipment choice for modern building materials production.（ 850 840 900 ）


微信图片_20260416152537_2905_2

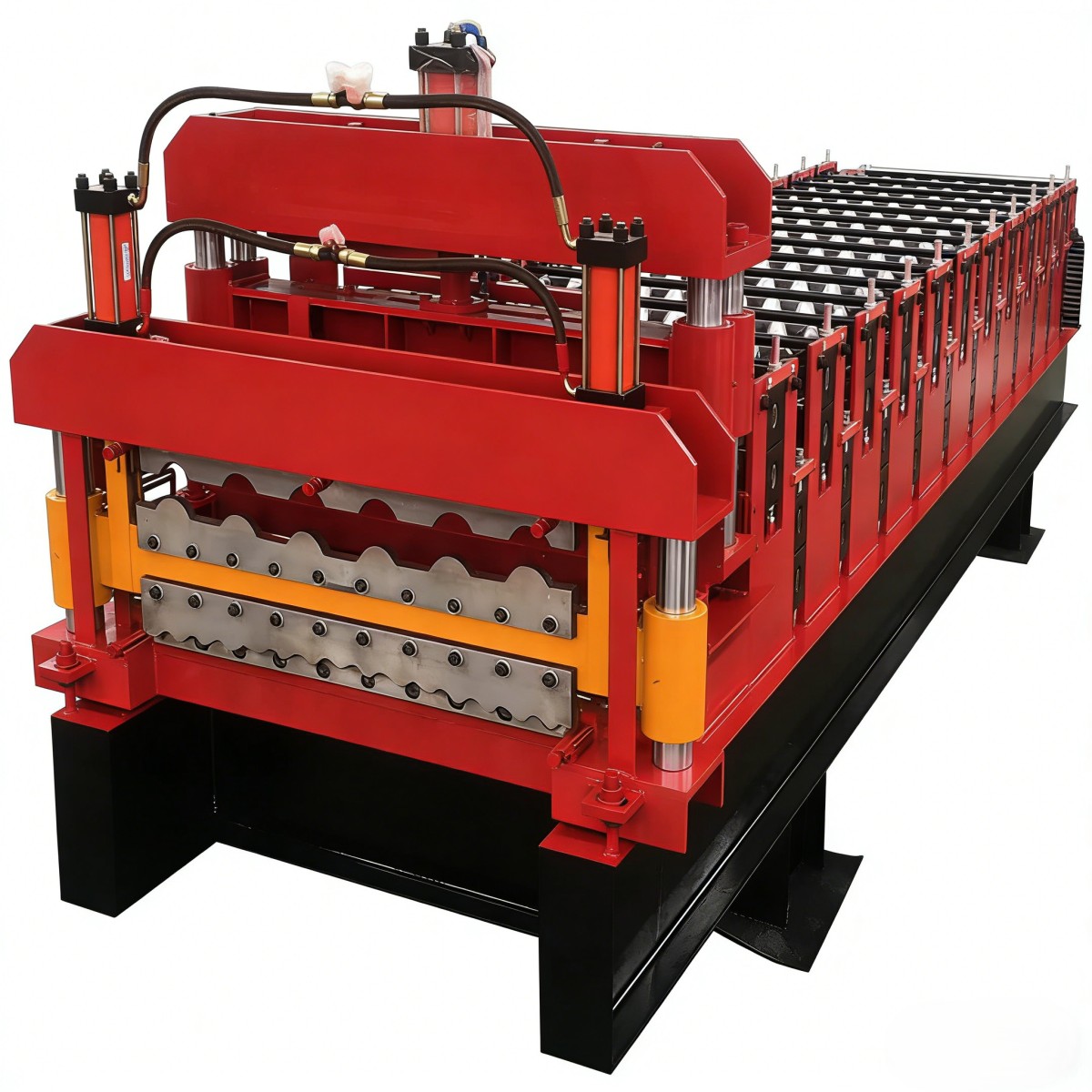

9-1

7-1


Product details

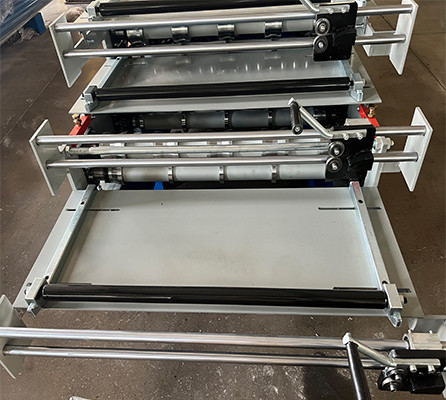

1776324034903302230293397504.jpgFeeding TablePut the raw material (steel plate) through the beach to manufacture and process, it can guarantee coil go straight and the out products neat, parallel.

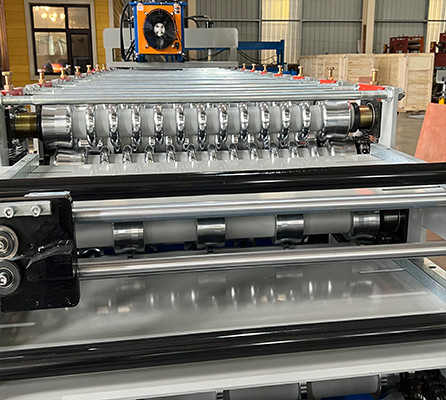

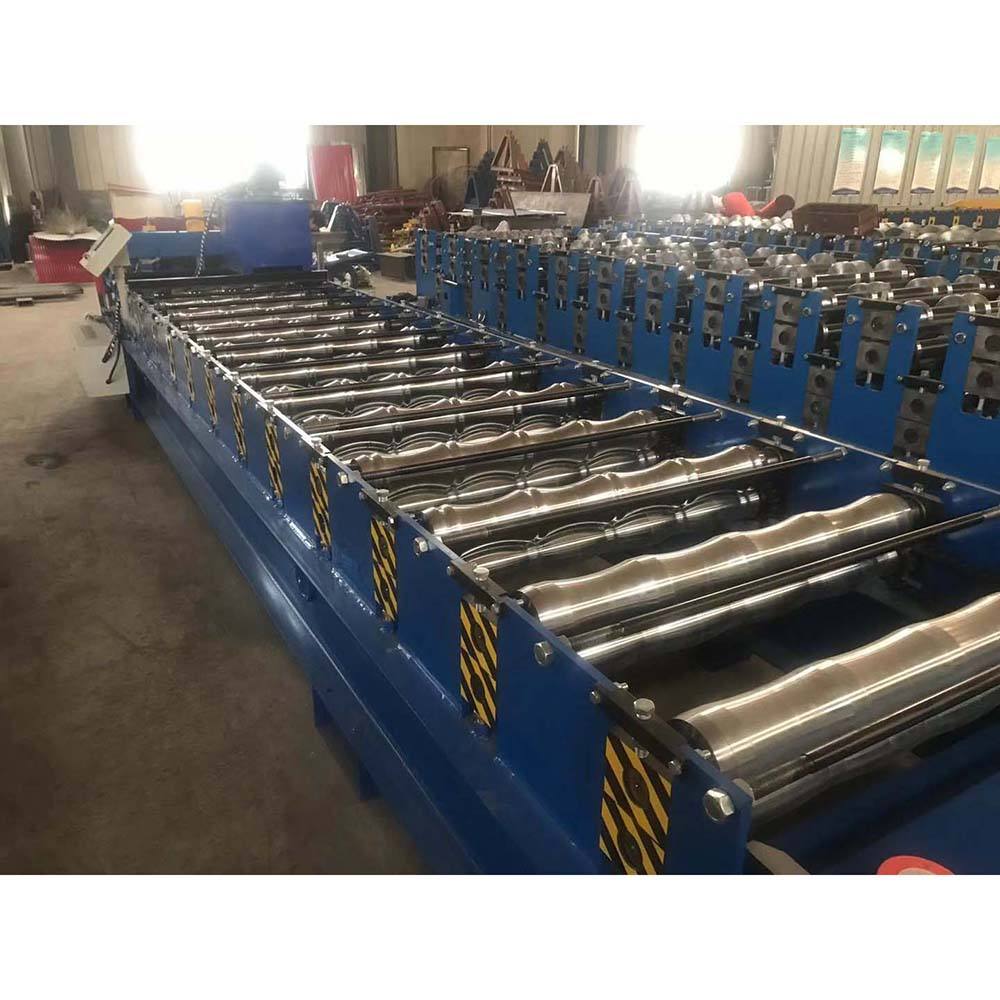

1776324034903302230322728960.jpgRoll Forming MachineRoller material: 45# steel with 0. 05mm chrome Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

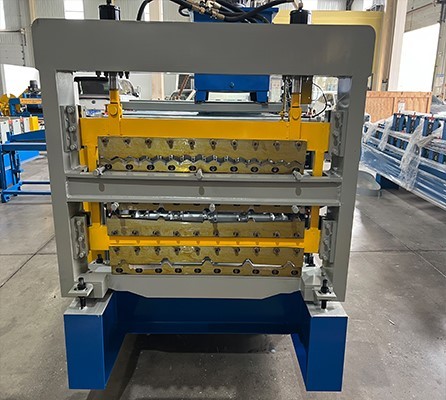

1776324792903305410796343296.jpgHydraulic Cutting DeviceControlled by oil pump Automatic cutting as target products length

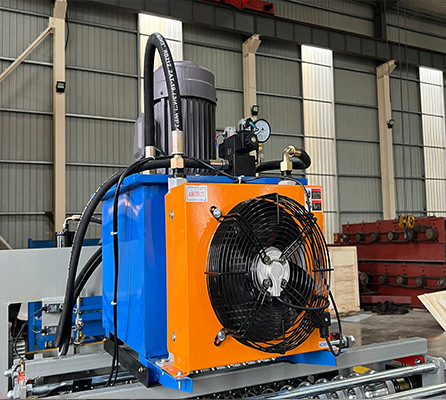

1776324034903302230297559040.jpgHydraulic Oil PumpHydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure:  8-10 MPa

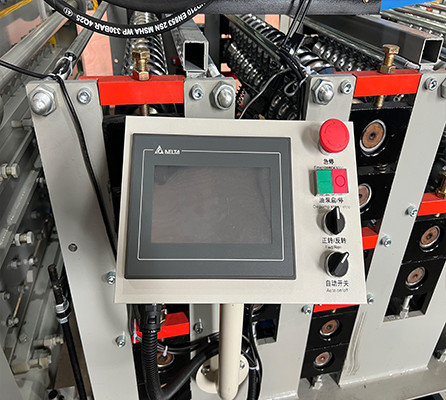

1776324034903302230331142144.jpgComputer Control SystemAutomatic length measurement   Automatic quantity measurement Computer is used to control length and quantity. Machine will automatically cut to length and stop when required     quantity is achieved

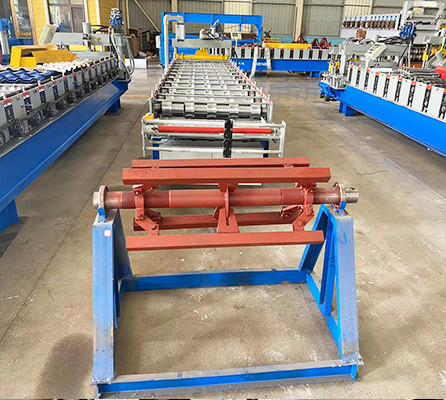

1776324034903302230326951936.jpgManual DecoilerIt is used to stand the  steel coil and uncoil, keep them work stably. Loading capacity: 5tons

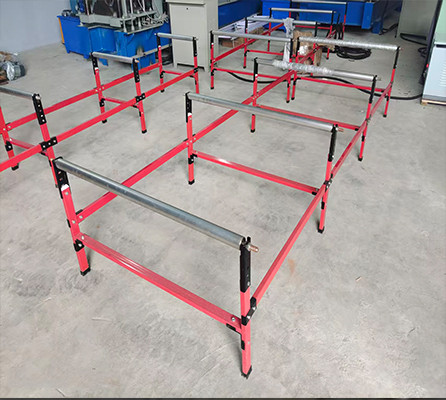

1776324034903302230293364736.jpgReceiving tableUsed to collect the finished pieces. Support roller to transmit pieces Easy for panel take away by forklifts

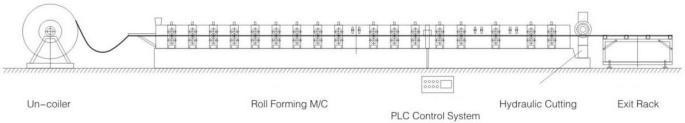

Uncoiling — Sheet guiding —-Auto punching- Roll forming — PLC control — Hydraulic pump system — Cutting system — Receiving table
Product Paramenters
NOTypeSpecification
1Raw materialTypePPGI
Thickness0.3-0.6 mm
2ProductFeeding width1000mm
Effective width850/900/840
3DecoilerOperationManual
Weight capacity5 Tons
4Main bodyRoller station9/9/ 11 rows
Diameter of shaft70 mm
Shaft material45#
Roller material45# with 0.05mm chrome
Frame350mm H-beam
Middle plate16mm
Machine sizeAbout 5.3*1.4*1 .6 m


Machine colorAs u want
Working speed10-15 m/min
5CutterOperationHydraulic cutting
Cutter materialCr12
6PowerDriving way1 ’’ Chain Drive
Main motor5.5 KW
Pump motor for cutter5.5 KW
Voltage380V/50HZ, 3 phase
7Control boxTypesPLC control system
PLC brandDelta made in Taiwan
EncoderOmron made in Japan
ScreenDelta Touch screen
LanguageChinese and English

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Our products can be customized according to customer needs.
